LTE-Enabled Gateway
This high performance wireless gateway seamlessly connects to up to 40 long range Omega Link Smart Sensor devices. LTE network-enabled connectivity ensures fast,wirelessconnection to the Omega Link Cloud. Local access is also available through the built-in web server accessible through an RJ45 port. The GW-002-1-LTE supports wired devices including Modbus TCP and RTU RS232/RS485 through a 5-pin serial terminal and an RJ45 port (used for local configuration only). It includes one USB port to enable local smart probe connections through a wired Omega Link Smart Interface.
1 Year LTE Service Included
The product is ready to go right out of the box and features an internal SIM card with 1 year of LTE service. This service is activated upon shipment and provides 1 year of connectivity from the gateway to the Omega Link Cloud. Annual renewals can be purchased through the Omega website.
Easy Wireless Smart Sensor Setup
The Omega Link LTE Gateway is easily paired to Omega Link Smart Sensors with the press of a button and will automatically show up on your Omega Link Cloud account. Local data logging for your Smart Sensor devices keeps your data secure in the event of a power or network outage. Reports, History, and E-mail alerts from the Omega Link Cloud keep you informed on the status of all your vital processes.
Secure
Omega Link wireless products are designed with state of the art security features to protect your data with robust AES256 encryption and advanced PKA-EC521bit (NIST) elliptic-curve cryptography to protect your data. The gateway features a Trusted Platform Module secure hardware element which protects the safety of all encryption keys and uses X.509 device certificates for secure communication between the gateway and the Omega Link Cloud.
Long Range
Omega Link Wireless Gateways utilize Sub GHz Frequency Hopping Spread Spectrum (FHSS) technology to ensure robust, long range communications to Omega Link Smart Sensors. Transmission ranges of up to 1.2 km can be achieved when the sensor is powered with the standard AA batteries, and transmission ranges of up to 3.2 km can be achieved with a Smart Sensor in range boost mode powered by a standard external 5V USB power supply.2
• Includes 1 Year of Renewable LTE Service
• Service Begins Once Device is Shipped
• AT& T Network Coverage
• Free Omega Link Standard Cloud Service Accessible from any Connected Device1
Data Acquisition
![SP 013 1 Link M12 Modular Smart Digital Interface countertotalizer 13305]()
OMEGASP-013-1 Link M12 Modular Smart Digital Interface counter/totalizer
Smart Digital interface counter/totalizer with I/O
Call Today!
800-567-8686Normally ships in 2-3 weeks![SP 004 1 Link M12 Environmental Monitoring Smart Probes 13306]()

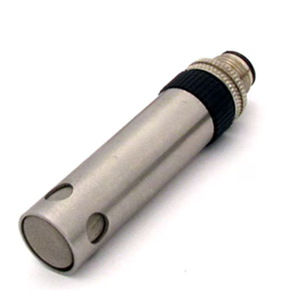

OMEGASP-004-1 Link M12 Environmental Monitoring Smart Probes
Smart Temperature and Humidity probe, Tube Housing
Call Today!
800-567-8686Normally ships in 2-3 weeks![SP 014 1 Link M12 Modular Smart Probe analog process interface w IO 13298]()

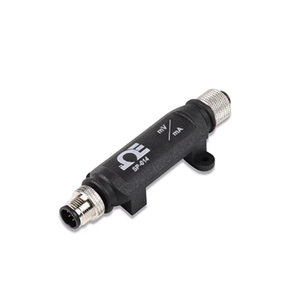

OMEGASP-014-1 Link M12 Modular Smart Probe analog process interface w/ I/O
Smart Analog interface Process with I/O
Call Today!
800-567-8686Normally ships in 2-3 weeks![SS 002 0 NA Wireless Thermocouple RTD Smart Sensor 13386]()

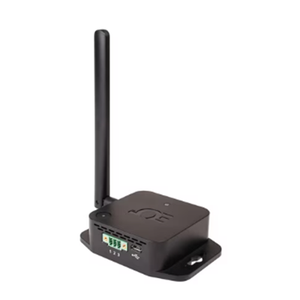

OMEGASS-002-0-NA Wireless Thermocouple/RTD Smart Sensor
Wireless Thermocouple/RTD Smart Sensor
Call Today!
800-567-8686Normally ships in 2-3 weeks![SS 001 1 NA Omega Link Wireless I Io T Smart Environmental Sensors 13387]()

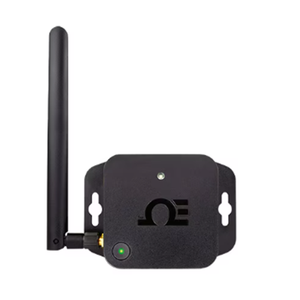

OMEGASS-001-1-NA Omega Link Wireless IIoT Smart Environmental Sensors
Temperature and Humidity Smart Sensor
Call Today!
800-567-8686Normally ships in 2-3 weeks
Accessories
![SP 001 0 Smart IR Sensor 70 C to 380 C Temperature 13309]()
OMEGASP-001-0 Smart IR Sensor -70°C to 380°C Temperature
Ultra miniature Smart IR Probe
This product is no longer available. Contact us at 800-567-8686 for alternative solutions.![M12 8 T SPLIT M12 8 pin shielded T Splitter 13299]()

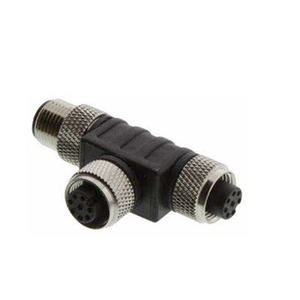

OMEGAM12.8-T-SPLIT M12-8 pin shielded T-Splitter
Smart Probe M12-8 pin shielded T-Splitter - enables access to I/O pins
Call Today!
800-567-8686Normally ships in 2-3 weeks![M12 8 S M FM M12 8 Pin Straight Plug 13300]()

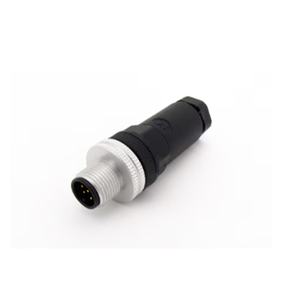

OMEGAM12.8-S-M-FM M12-8 Pin Straight Plug
M12-8 pin Straight Plug Field install connector with screw terminals
Call Today!
800-567-8686Normally ships in 2-3 weeks![SP 005 1 Link M12 Modular Thermocouple RTD Temp Smart Probe 13302]()
OMEGASP-005-1 Link M12 Modular Thermocouple & RTD Temp. Smart Probe
Thermocouple and RTD Temperature Smart Probe
Call Today!
800-567-8686Normally ships in 2-3 weeks![IF 001 Omega Link Modbus Compatible USB Serial to smart probe interface 13327]()

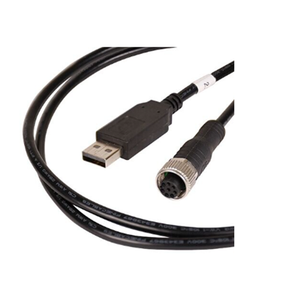

OMEGAIF-001 Omega Link Modbus Compatible USB Serial to smart probe interface
Modbus compatible USB Serial to Smart Probe Interface
Call Today!
800-567-8686Normally ships in 2-3 weeks![IF 002 Omega link Smart Probe to Modbus RTU RS 485 serial Interface 13328]()

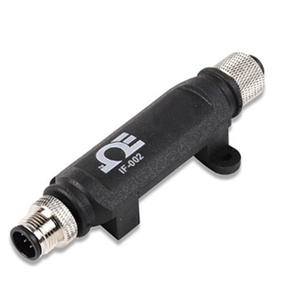

OMEGAIF-002 Omega link Smart Probe to Modbus RTU RS-485 serial Interface
Modbus Compatible Smart Probe Interface to RS485 serial
Call Today!
800-567-8686Normally ships in 2-3 weeks![IF 006 1 NA Long Range Sub GHZ Wireless Universal Smart probe Interface 13330]()

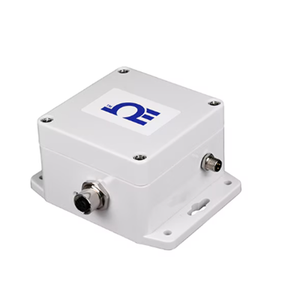

OMEGAIF-006-1-NA Long Range Sub GHZ Wireless Universal Smart probe Interface
Smart Probe Wireless interface 915 MHZ
Call Today!
800-567-8686Normally ships in 2-3 weeks![SP 016 1 Omega Link M12 Modular Smart Heat Flux Sensor Interface w IO 13120]()

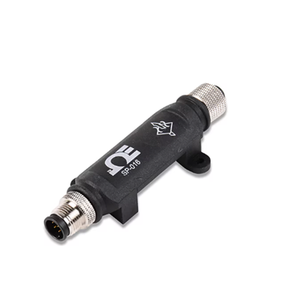

OMEGASP-016-1 Omega Link M12 Modular Smart Heat Flux Sensor Interface w I/O
Smart Heat Flux Sensor with I/O
Call Today!
800-567-8686Normally ships in 2-3 weeks![DM12 CAB 8 1 RA M12 8 pin for Smart Sensors Transmitters Dual RTD 13121]()
OMEGADM12CAB-8-1-RA M12, 8 pin, for Smart Sensors, Transmitters, Dual RTD
Dual M12 Cables for Sensors and Transmitters
Call Today!
800-567-8686Normally ships in 2-3 weeks![DM12 CAB 8 3 RA M12 Cable 8 pin for Smart Sensors Transmitters Dual RTD 13122]()
OMEGADM12CAB-8-3-RA M12 Cable, 8 pin for Smart Sensors, Transmitters, Dual RTD
Dual M12 Cables for Sensors and Transmitters
Call Today!
800-567-8686Normally ships in 2-3 weeks![DM12 CAB 8 5 RA M12 Cable 8 pin for Smart Sensors Transmitters Dual RTD 13123]()

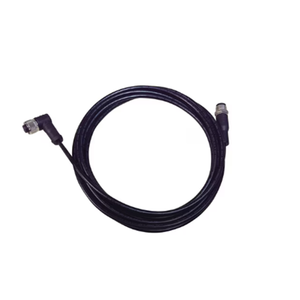

OMEGADM12CAB-8-5-RA M12 Cable, 8 pin, for Smart Sensors, Transmitters, Dual RTD
Dual M12 Cables for Sensors and Transmitters
Call Today!
800-567-8686Normally ships in 2-3 weeks![DM12 CAB 8 1 M12 Cable 8 pin for Smart Sensors Transmitters Dual RTD 13124]()
OMEGADM12CAB-8-1 M12 Cable, 8 pin, for Smart Sensors, Transmitters, Dual RTD
Dual M12 Cables for Sensors and Transmitters
Call Today!
800-567-8686Normally ships in 2-3 weeks![DM12 CAB 8 3 M12 Cable 8 pin for Smart Sensors Transmitters Dual RTD 13125]()
OMEGADM12CAB-8-3 M12 Cable, 8 pin, for Smart Sensors, Transmitters, Dual RTD
Dual M12 Cables for Sensors and Transmitters
Call Today!
800-567-8686Normally ships in 2-3 weeks![SP 002 0 Smart IR Sensor 13312]()

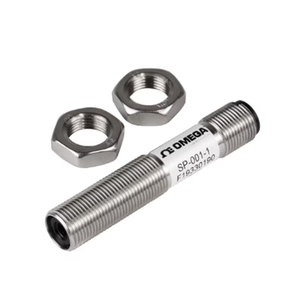

OMEGASP-002-0 Smart IR Sensor
Smart IR Sensor -70°C to 380°C Temperature
Call Today!
800-567-8686Normally ships in 2-3 weeks![SP 002 1 Smart IR Sensor 13317]()

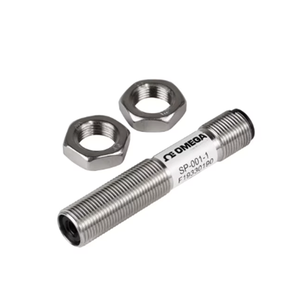

OMEGASP-002-1 Smart IR Sensor
Smart IR Sensor -70°C to 380°C Temperature
Call Today!
800-567-8686Normally ships in 2-3 weeks![SP 004 4 Smart Temp RH Probe Bulkhead Mount 13318]()

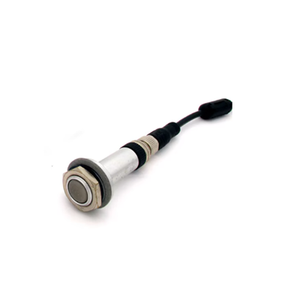

OMEGASP-004-4 Smart Temp & RH Probe, Bulkhead Mount
Smart Temperature and Humidity probe, Bulkhead Mount
Call Today!
800-567-8686Normally ships in 2-3 weeks![SP 003 3 Temp RH Smart Probe w IO Bulkhead Housing 13319]()
OMEGASP-003-3 Temp, RH Smart Probe w/ I/O Bulkhead Housing
Temperature, Humidity Smart Probe with I/O Bulkhead Housing
Call Today!
800-567-8686Normally ships in 2-3 weeks![SP 010 1 Smart Load Cell interface with IO 13320]()
OMEGASP-010-1 Smart Load Cell interface with I/O
Smart Load Cell interface with I/O
Call Today!
800-567-8686Normally ships in 2-3 weeks![SS 001 3 NA Omega Link Wireless I Io T Smart Enironmental Sensors 14141]()

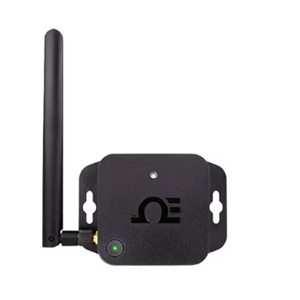

OMEGASS-001-3-NA Omega Link Wireless IIoT Smart Enironmental Sensors
Temperature, Humidity, Barometric Pressure, and Light Smart Sensor
Call Today!
800-567-8686Normally ships in 2-3 weeks![SS 002 1 NA Wireless Thermocouple RTD Smart Sensor 14142]()

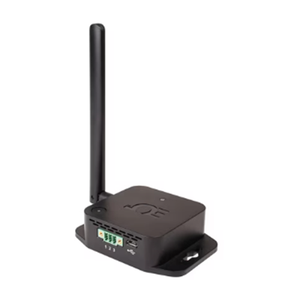

OMEGASS-002-1-NA Wireless Thermocouple/RTD Smart Sensor
Wireless Thermocouple/RTD Smart Sensor with environmental sensors
Call Today!
800-567-8686Normally ships in 2-3 weeks
