OMEGA
SP-016-1 Omega Link M12 Modular Smart Heat Flux Sensor Interface w I/O
Smart Heat Flux Sensor with I/O
The Omega Link SP-016 Heat Flux Smart Probe provides an easy way to integrate your thermopile-based heat flux sensor to the Omega Link Ecosystem. The SP-016 performs the necessary calculations to provide the heat flux measurement in W/m2. The SP-016 accepts heat flux sensors through its M12 4-pin connector and Omega Link Smart Interfaces through its M12 8-pin connector. Omega offers an optional M12-S-M-FM connector to easily connect wire leads to your SP-016.
The SP-016 supports any single thermopile sensor input (mV/W/ m2) and temperature compensation input (thermocouple). Additionally, the SP-016-1 provides 2 open drain discrete inputs/outputs that may be used to detect external switch closures or control external alarms and control relays.
Intuitive Configuration
Easily configure your Omega Link Smart Probe using SYNC’s intuitive configuration interface. Additionally, an integrated command line interface allows for quick serial setup of your Smart Probe and Smart Interface using standard terminal emulators.
Smart Interface Modularity
Customize your Omega Link Ecosystem with modular Smart Interfaces that connect and transmit data from your Smart Probe to the Omega Link Cloud.
Smart Core Enabled
Omega Link Smart Probes are integrated with an advanced suite of IIoT Smart Core features. These features enable plug and play connectivity, alarms and notifications, data assurance, data logging, and storage.
Your Data at a Glance with Omega Link Cloud
Omega Link Cloud consolidates and brings your data to you when you need it, wherever you are. The intuitive cloud interface allows you to monitor and store your data, set alarms and alerts, and provides insights on device activity. Visit the OMEGA website for more details.
• 1x Heat Flux Thermopile including Thermocouple Temperature Compensation monitoring device
• Standard 2x Digital I/O
• Software configurable through SYNC configuration software
• Modular M12 construction
Accessories
![M12 8 S FM Field Mountable M12 M8 Connectors 12937]()

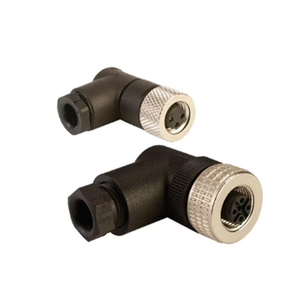

OMEGAM12.8-S-FM Field Mountable M12 & M8 Connectors
Field Mountable M8 and M12 Connectors
