Starting at $42.90USD
ConfigureNoshok
Thermowells
Allows a temperature instrument to be removed & replaced without shutting down & draining the process
• Allows a temperature instrument to be removed and replaced without shutting down and draining the process
• Reduces the possibility of damage to the temperature instrument
• Provides protection to the operator

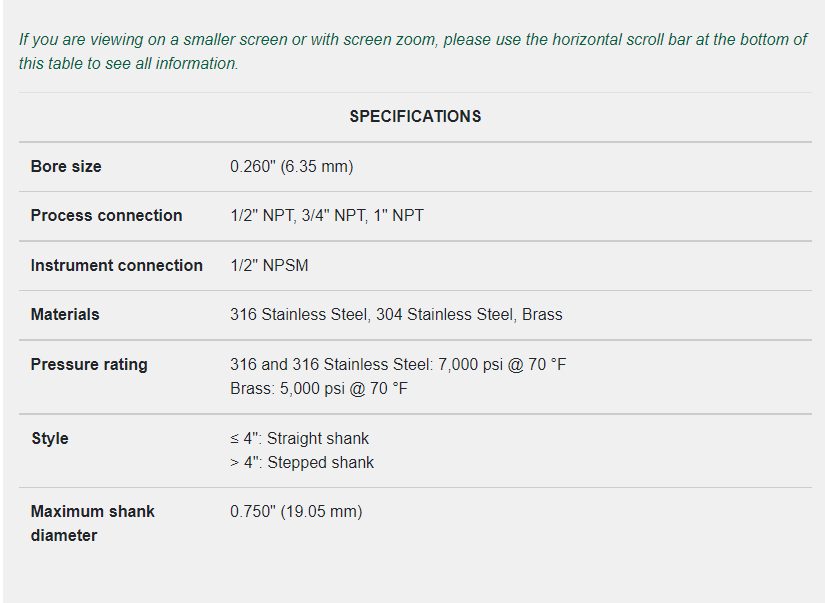

• 1/2" NPSM instrument connection, 3/4" NPT process connection standard - 1/2" NPT, 1" NPT, flanged and sanitary options available
• 150 Class and 300 Class raised face flanged thermowells available
• The Female thread will accept the 1/2" NPT Male thread without galling or seizing
• Brass, 304 Stainless Steel, or 316 Stainless Steel standard material options - other options available
• Standard style is stepped, available in straight, tapered and lagging options
• Multiple lagging lengths available
• Recommended wherever the process being measured is under pressure, corrosive, abrasive, or moving at a high velocity
• HVAC
• Petrochemical
• Oil and gas
• Process (flanged thermowells)
