SafEye Quasar 950 Open Path Gas Detector

Long range toxic gas detection up to 200ft (60m), high sensitivity and fast response, multiple output options

Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Used in
Saf Eye Quasar 950 Open Path Gas Detector 01440

The latest SafEye Quasar open path UV detection technology, the Quasar 950, detects toxic Hydrogen Sulfide gas with path lengths of up to 200ft (60m). The Quasar 950 can be tailored to protect your personnel and high-risk installation. Reliability is key and is assured with SIL2.

All Quasar 950 detectors incorporate heated windows to minimize any effects from condensation, icing, snow and are totally immune to interference from sunlight or any other sources of radiation such as flare stacks, arc welding or lightning. A range of outputs are available including mA, HART, Modbus RS485 to suit all control systems.




• Long Range Gas Detection up to 200ft (60m)
• Detection of toxic gases
• High Sensitivity and fast response
• Heated optics to improve performance in ice, condensation and snow conditions
• Continuous operation in extreme and harsh environmental conditions
• Solar blind and immune to industrial environments
• Withstands extreme vibration conditions
• Multiple output options for maximum flexibility and compatibilty
  - 0-20mA
  - HART Protocol for maintenance and asset management
  - RS-485, Modbus Compatible
• Simple, one person installation, alignment, and calibration
• Programmable configuration via the handheld unit
• Fast connection to I.S approved handheld diagnostic/calibration unit
• 3mA "maintenance call"
• 3 Year Warranty
• ATEX & IECEx
• Safety Integrity Level SIL2 (TUV)

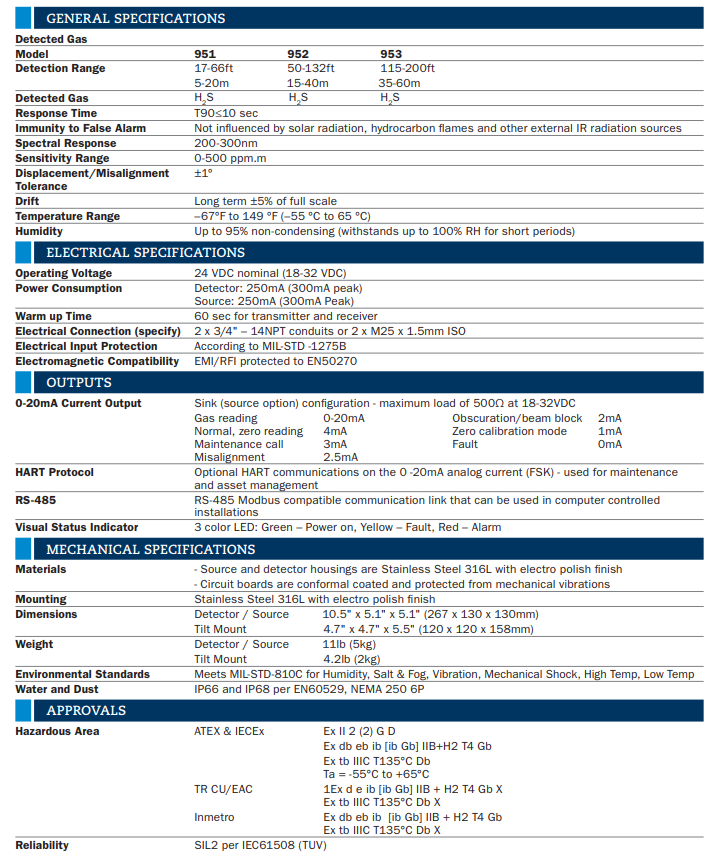

Detected GasesDetection of toxic gases such as Hydrogen Sulfide (H2S) and Ammonia
Detection Range Model 951:
16-66ft (5-20m) - H2S

Model 961:
16-66ft (5-20m) - Ammonia

Model 952:
50-132ft (15-40m) - H2S

Model 962:
50-132ft (15-40m) - Ammonia

Model 953:
115-200ft (35-60m) - H2S

Model 963:
115-200ft (35-60m) - Ammonia



MO
Response TimeT90≤10 sec
Immunity to False AlarmNot influenced by solar radiation, hydrocarbon flames and other external IR radiation sources
Spectral Response200-300nm
Sensitivity Range0-500 ppm.m
Displacement/Misalignment Tolerance±1º
DriftLong term ±5% of full scale
Temperature Range–67ºF to 149 ºF (–55 ºC to 65 ºC)
HumidityUp to 95% non-condensing (withstands up to 100% RH for short periods)

• Offshore platforms and FPSOs
• Petrochemical plants
• Chemical
• Gas filling and distribution terminals
• Gas transport and pipelines
• Perimeter monitoring
