PLS Paddle Level Switch

Name: PLS Paddle Level Switch
SKU: placeholder-pls-paddle-level-switch
Price: 60.70 USD
Availability: InStock

Weatherproof and explosion proof option, rotary paddle level control, top or side mounting for dry bulk materials

Starting at

$60.70USD

Have questions? We're here to help!

Call

Configure

Used in

The Series PLS Paddle Level Switch uses a 1 rpm synchronous motor to rotate a paddle and sense the presence of dry powder or bulk materials. Movement is impeded when product comes into contact with the paddle and the resulting motor torque activates the output switches and stops the motor. The PLS is designed with the industry standard 1-1/4" male NPT connection and mounting flanges.

• Magnetic drive that isolates and completely seals the control head from the process and environment preventing material or dust from entering the control head.
• Motor shuts-off when paddle stalls increasing motor life, preventing motor burnout, and decreasing power usage.
• Slip clutch design enabled by the magnetic drive that prevents damage to motor and drive mechanism from sudden or excessive loading on the paddle.
• Status indication light on weatherproof models.
• Screw cover on the enclosure for easy access with no worries about losing bolts or screws.

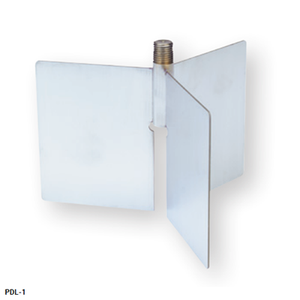

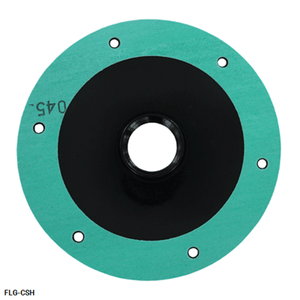

• Modular design to allow field installation of any paddle, flanges, shaft extensions, or shaft guards.
• Flexible coupling available for protection of the paddle and drive from side loads, surges or impacts. Recommended for top mount applications with shaft extension and applications with large or heavy materials.

Sensitivity	Minimum material density of 5 lb/ft³ (80 kg/m³), maximum of 200 lb/ft³ (3200 kg/m³)
Wetted Materia;s	Paddles: 316 SS. Exposed Shaft: 316 SS. Shaft Seal: PTFE. Mounting Boss: Aluminum. Flexible Coupling: 316 SS. Mounting Flanges: Carbon Steel or 316 SS. Shaft Extension and Shaft Guards: Galvanized Steel or 316 SS
Temperature Limits	Standard Construction: Process: -40°F - 300°F (-40°C - 148.9°C); Ambient: -40°F - 185°F (-40°C - 85°C); High Temperature: Process: -40°F - 500°F (-40°C - 260°C); Ambient: -40°F - 185°F (-40°C - 85°C)
Pressure Limit	30 PSIG (2.07 Bar) maximum for 0.5 µm or larger material
Power Requirement	Select by part number: 110-120 VAC, 230 VAC, 24 VAC, 48 VAC, or 12 VDC
Power Consumption	Weatherproof models: 5 W Explosion-proof models: 3 W
Enclosure	Aluminum, powder coated
Enclosure Rating	Weatherproof (W, WH construction): NEMA 4X, Explosion-proof (E, EH construction): NEMA 4X and rated for Class I, Div. 1 & 2, Groups C & D, Div. 1 & 2, Groups E, F, & G
Switch Type	SPDT or optional DPDT snap switch
Electrical Rating	15 A @ 120/230 VAC
Electrical Connections	Screw terminals
Conduit Connection	3/4 in female NPT
Process Connection	1-1/4 in male NPT. Optional flange
Indication Light	Red LED that activates when switch is made or when switch is not made with RL option (not available on Explosion-proof models)
Time Delay Relay Option	Five field adjustable ranges from 0 - 1 min to 0 - 31 min. (RL option not available, DPDT option not available with 230 VAC time delay)
Weight	Control head only: 4 lb (1.81 kg)
Agency Approvals	cUL, UL approved as an auxiliary device or as an auxiliary device for hazardous locations
Service	Dry powder or bulk materials compatible with wetted materials
