PC103U1-200GI Fully flush Diaphragm Press. Transducers

0 to 200 psi, Gauge, 4 to 20 mA, MIL-26482-I 10-6P

This product is no longer available. Contact us at 800-567-8686 for alternative solutions.

Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Used in
PC103 U1 200 GI Fully flush Diaphragm Press Transducers 14197

 OMEGA’s PX103 Series transmitters feature a rugged all stainless steel case and a highreliability, low-noise 4 to 20 mA output. They are designed for use in critical applications in wastewater management, chemical manufacturing, water processing, tank and level operations, and other industrial applications in which a non-plugging flush diaphragm is needed.


• All Stainless Steel
• Amplified Voltage and 4-20 mA Outputs Avaliable
• Flush Diaphragm for Hard-to-Measure Fluids
• Ideal for Tank and Level Applications
Operating Temp Range
<100 psi-40 to 82°C (-40 to 180°F)
≥100 psi-46 to 121°C (-50 to 250°F)
Compensated Temp Range
<100 psi-1 to 54°C (30 to 130°F)
≥100 psi-18 to 66°C (0 to 150°F)
Thermal Effects
<100 psi:
Span<±2% within compensated range
Zero<±1% within compensated range
≥100 psi:
Span0.003% rdg/°F
Zero0.0045% FS/°F
Proof Pressure
<100 psi200% of rated pressure
≥100 psi150% rated pressure, 30,000 psi maximum
Burst Pressure
<100 psi500% of rated pressure
4 to 20 mA Output
Excitation10 to 30 Vdc
Output4 to 20 mA
Zero Balance4 mA ±0.2 mA
Accuracy
<100 psi±1% linearity, hysteresis and repeatability combined
≥100 psi±0.5% linearity, hysteresis and repeatability combined
≥100 psi300% of rated pressure, 50,000 psi maximum
Wetted Parts
Ranges <100 psi316 stainless steel
Ranges ≥100 psi17-4 PH stainless steel
Pressure PortFlush diaphragm
O-RingNot included #2-018
Electrical ConnectionPTIH-10-6P or equal
Optional Connecction3 m (10') 2-conductor shielded PVC cable
Mating ConnectorPT06F-10-6S (not included)

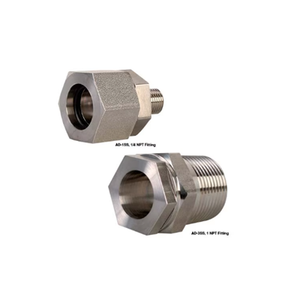

Accessories
