PBLT2 / PBLTX Submersible Level Transmitter

Name: PBLT2 / PBLTX Submersible Level Transmitter
SKU: placeholder-pblt2-pbltx-submersible-level-transmitter
Price: 919.60 USD
Availability: InStock

Perfect for sludge and slurries, lightning protected, intrinsically safe

Starting at

$919.60USD

Have questions? We're here to help!

Call

Configure

Used in

PBLT2 PBLTX Submersible Level Transmitter 05191

PBLT2 PBLTX Submersible Level Transmitter 1611c

PBLT2 PBLTX Submersible Level Transmitter 91768

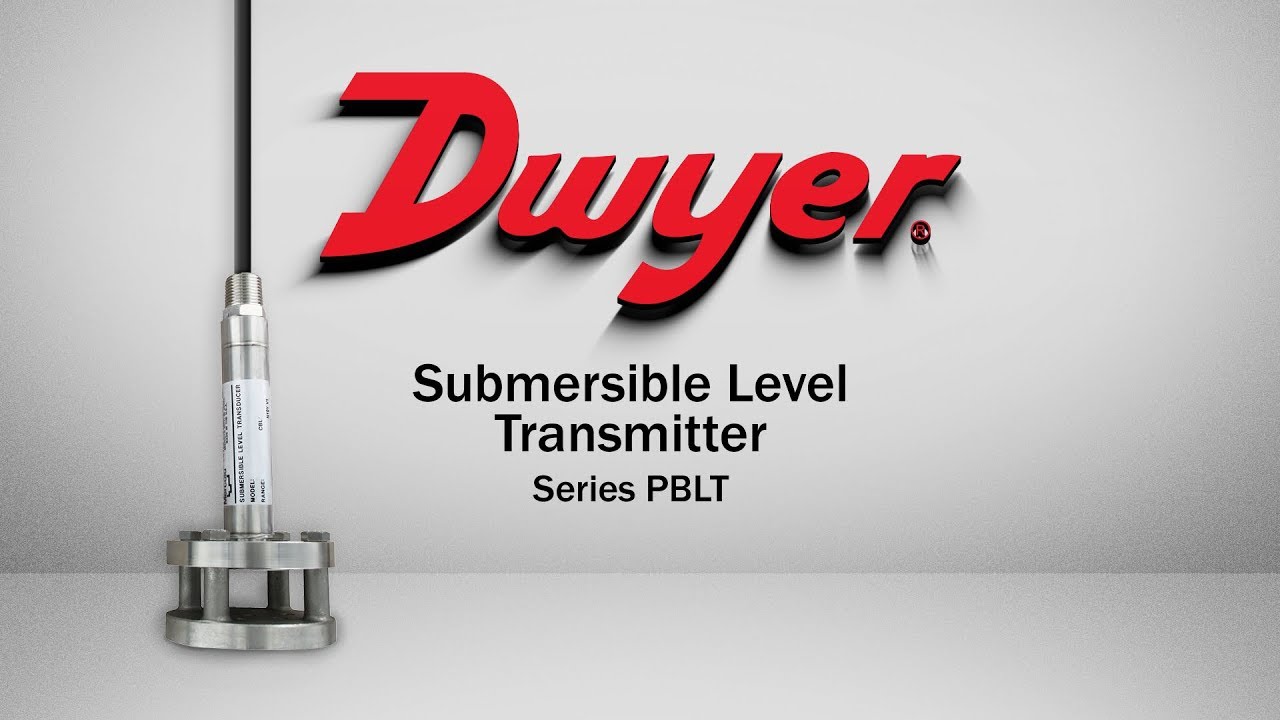

PBLT2 and PBLTX Submersible Level Transmitters are manufactured for years of trouble free service in the harshest applications. Both measure the height of liquid above the position in the tank referenced to atmospheric pressure. The transmitter consists of a piezoresistive sensing element, encased in a 316 SS housing. Perfect for wastewater and slurry applications with features to protect the unit from these demanding applications. Large diameter 316 SS diaphragm seal is non-clogging and damage resistant to floating solids.

The PBLT2 incorporates lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty). The PBLTX is UL approved intrinsically safe for use in hazardous locations when used with proper barrier.

Units come equipped with a 270-pound tensile strength shielded and vented cable. Ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank. The vent is protected with a maintenance free filter eliminating particulate or water droplets from entering the transducer.

• Meet application requirements with durable cage design with large diameter 316 SS diaphragm seal that is non-clogging and damage resistant to floating solids

• Increased life with lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty) on PBLT2 models

• Eliminates particulate or water droplets from entering the transducer using maintenance-free filter

• Peace of mind with UL approved intrinsically safe on PBLTX models for use in hazardous locations when used with proper barrier

• Decrease ownership cost with durable, 270 lb tensile strength shielded and vented cable and excellent chemical compatibility

• Flexible installation options with NPT connection to rigidly install in a pipe/conduit or use a A-625 hanging loop to attach a chain to remove from the installation

Service	Compatible liquids
Wetted Materials	316 SS, 316L SS, Epoxy, cable: ETFE or polyurethane
Accuracy	± 0.25% FS (includes linearity, hysteresis, and repeatability)
Temperature Limit	PBLT2: 0°F - 200°F (-18°C - 93°C), PBLTX: 0°F - 176°F (-18°C - 80°C)
Compensated Temperature Range	PBLT2: 0°F - 180°F (-18°C - 82°C), PBLTX: 0°F - 176°F (-18°C - 80°C).
Thermal Effect	± 0.02% FS/°F
Pressure Limit	2X FS.
Power Requirement	PBLT2: 13 VDC - 30 VDC, PBLTX: 10 VDC - 28 VDC
Output Signal	4 - 20 mA DC, two wire
Response Time	50 ms
Loop Resistance	900 Ω
Electrical Connection	Wire pigtail
Mounting Orientation	Suspended in tank below level being measured
Electrical Protection	PBLT2: Lightning and surge protection, PBLTX: none
Weight	4.3 lb (2.0 kg)
Agency Approvals	PBLT2: CE, PBLTX: CE, cULus intrinsically safe for Class I, Div. 1, Groups A, B, C, D; Class II, Div. 1, Groups E, F, G; Class III, Div. 1. (According to control drawing 01-700797-00).*
Up to 196 ft (59.5 m) for ETFE cable; Up to 333 ft (101.5 m) for polyurethane cable
