FMA1006R-MA Indicating Air Velocity/Temperature Xtr w/ I or V Output

Name: FMA1006R-MA Indicating Air Velocity/Temperature Xtr w/ I or V Output
SKU: placeholder-fma1006r-ma-indicating-air-velocity-temperature-xtr-w-i-or-v-output
Availability: InStock

Remote Mount 12" Probe, 4-20 mA Output, 0-12,000 FPM

Have questions? We're here to help!

Call

Used in

FMA1006 R MA Indicating Air Velocity Temperature Xtr w I or V Output 14035

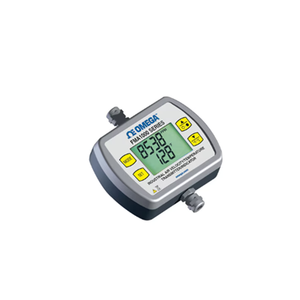

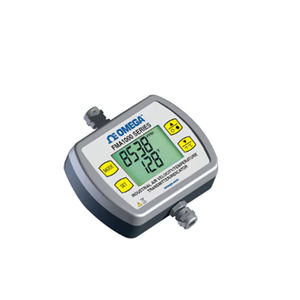

The FMA1000 Series industrial air velocity and temperature transmitter/indicator measures and displays air velocity as well as air temperature in research and development labs, HVAC applications, and other manufacturing processes. The sensor design is based on three RTD elements, one measures air temperature and the other two measure air velocity by measuring the heat loss from the RTD sensor as it cools down by the air flow.

The FMA1000 series offers many standard features such as display of air velocity and temperature, two analogue outputs corresponding to air velocity and temperature, high and low voltage alarm outputs, USB serial interface, and Windows® based data logging software. The FMA1000 displays the air velocity in different engineering units such as FPM, m/sec, miles/hour, and km/hour. The air temperature is displayed in °C or °F.

The cross sectional area (csa) of the pipe or duct can be entered by the user, allowing the display of flow volume in cubic metres per minute (m³/min) or cubic feet per minute (ft³/min).

• Measures Air Velocities up to 50.8 m/sec (1o,000 FPM)

• Measures Air Temperature up to 93°C (199°F)

• 3 Different Sensor Probe Configurations

• 250 msec Response time, programmable up to 2 seconds

Accuracy
Weight	230 g
Case Dimensions	114 H x 89 W x 38 mm D
Power	15 to 24 Vdc, 200 mA
Alarms	High and low, voltage outputs, corresponding to air velocity
Electronic Case	0 to 50°C
Sensor Probe	-40 to 93°C
Operating Ambient Temperature
Operating Relative Humidity	< 80% RH non-condensing.
Air Velocity/ Temperature Probe Pressure	10 bar max.
Analogue Output ( Air Temperature )	0 to 5 Vdc
Analogue Output ( Air Velocity)	4 to 20 mA, 0 to 5 Vdc, or 0 to 10 Vdc
Display	Backlit LCD, 32 x 51 mm
Air Velocity	1.5% full scale
Air Velocity/Temperature Sensor	Three RTDs, 100 and 1000 Ω
Air Velocity/Temperature Probe	Stainless steel, 6.35 OD x 300 mm L
Air Temperature	0.5% full scale
Air Temperature Range	-40 to 93°C
Air Volume Display	Store csa of pipe/duct to allow volumetric display in metres³/min or feet³/min
Air Velocity Ranges	0 to 1000 FPM, 0 to 5.08 m/s; 0 to 5000 FPM, 0 to 25.4 m/s; 0 to 10000 FPM, 0 to 50.8 m/s
