AXD Industrial Pressure Transducer

Name: AXD Industrial Pressure Transducer
SKU: placeholder-axd-industrial-pressure-transducer-2
Price: 303.00 USD
Availability: InStock

For Industrial and OEM customers who require high performance, reliability and versatility at an affordable price

Starting at

$303.00USD

Have questions? We're here to help!

Call

Configure

Used in

AXD Industrial Pressure Transducer 05950

The AXD™ Is Now Available

The Accusense™ Model AXD industrial pressure sensor is designed for Industrial and OEM customers who require high performance, reliability and versatility at an affordable price. It offers exceptional ±0.25% FS accuracy for pressure ranges as low as 1 PSI up to 10,000 PSI to meet a multitude of demanding applications. The Model AXD features all stainless steel wetted materials 17-4PHSS when ordered as "AXD1" or 316LSS when ordered as "AXDH".

• High accuracy sensor
• IP67 rated design
• Non-oil filled design
• Long-term stability: less than 0.5%/year
• Exceptional EMI/RFI
• Rugged design withstands high shock & vibration
• NIST traceable calibration
• Wide operating voltage: 9 VDC to 30 VDC
• Multiple electrical termination and pressure fitting options
• Reverse wire protection
• CE & RoHS compliant

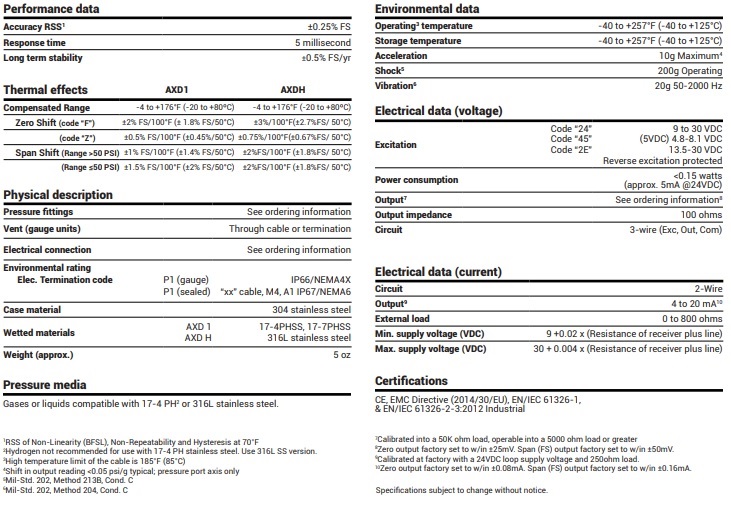

Performance Data
Accuracy RSS	±0.25% FS
Response Time	5 millisecond
Long Term Stability	±0.5% FS/yr
Thermal Effects
Compensated Range	AXD1:-4 to +176°F (-20 to +80ºC) AXDH:-4 to +176°F (-20 to +80ºC)
Zero Shift (Code “F”)	AXD1:±2% FS/100°F (± 1.8% FS/50°C) AXDH:±3%/100°F(±2.7%FS/ 50°C)
Zero Shift (Code “Z”)	AXD1:±0.5% FS/100°F (±0.45%/50°C) AXDH:±0.75%/100°F(±0.67%FS/ 50°C)
Span Shift (Range >50 PSI)	AXD1:±1% FS/100°F (±1.4% FS/50°C) AXDH:±2%FS/100°F (±1.8%FS/ 50°C)
Span Shift (Range ≤50 PSI)	AXD1:±1.5% FS/100°F (±2% FS/50°C) AXDH:±2%FS/100°F (±1.8%FS/ 50°C)
Physical Description
Environmental Rating Elec. Termination code	P1 (gauge) IP66/NEMA4X P1 (sealed) “xx” cable, M4, A1 IP67/NEMA6
Case Material	304 stainless steel
Wetted Materials AXD 1	17-4PHSS, 17-7PHSS
Wetted Materials AXD H	316L stainless steel
Weight (approx.)	5 oz
Environmental Data
Operating Temperature	-40 to +257°F (-40 to +125°C)
Storage Temperature	-40 to +257°F (-40 to +125°C)
Acceleration	10g Maximum
Shock	200g Operating
Vibration	20g 50-2000 Hz
Electrical Data (Voltage)
Excitation Code “24”	9 to 30 VDC
Excitation Code “45”	(5VDC) 4.8-8.1 VDC
Excitation Code “2E”	13.5-30 VDC
Power Consumption	<0.15 watts (approx. 5mA @24VDC)
Output Impedance	100 ohms
Circuit	3-wire (Exc, Out, Com)
Electrical Data (Current)
Circuit	2-Wire
Output	4 to 20 mA
External Load	0 to 800 ohms
Min. supply voltage (VDC)	9 +0.02 x (Resistance of receiver plus line)
Max. supply voltage (VDC)	30 + 0.004 x (Resistance of receiver plus line)
Certifications	CE, EMC Directive (2014/30/EU), EN/IEC 61326-1 & EN/IEC 61326-2-3:2012 Industrial
