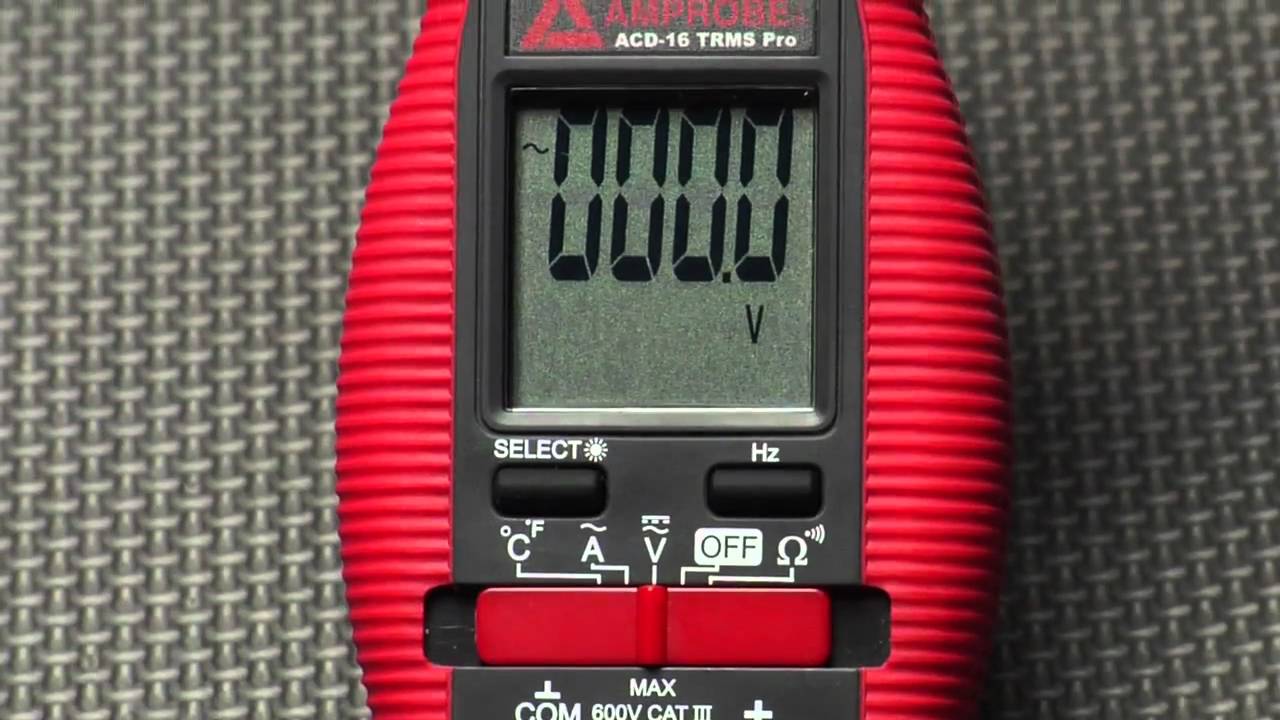

ACD-16-PRO-TRMS 1000 A Data Logging Clamp Meter with Temperature
Troubleshoot a system with a full range of measurements enhanced with data logging capabilities to catch what the eye can't see
Need the perfect tool to troubleshoot a system? The ACD-16 TRMS PRO provides a full range of measurements, enhanced with data logging capabilities, to catch what the eye can’t see. Double the efficiency, with an optional PC interface kit.
The ACD-16 comes with test leads, banana plug K-type thermocouple, two (2) 1.5 V AAA batteries (installed), user manual, and a carrying case.
• True-RMS and backlight screen
• Measurements: AC/DC voltage up to 600 V, AC current up to 1000 A, resistance, frequency and temperature
• Data-logging 5400 points
• Optional PC interface capability (RS-232 KIT2)
• Audible continuity
• Auto power off
• Automatic polarity
• Low battery indication
• Data hold
• Large, easy to read LCD display
• Accommodates conductors up to 1.77 in (45 mm) in diameter
• Carrying case, thermocouple, test leads, batteries (installed) and user manual included
• Voltage overload protection for all functions up to 600 V AC/DC
