 With NEMA Type 4X, stainless steel enclosure and advanced gasket system, the industrial-strength Legend Series is built for dirty, wet environments and demanding workplaces, inside or out. Choose between large, ultra-bright LED or LCD 0.8-inch displays with 6-digits and sharp contrast for superior display visibility.


Advanced circuitry withstands electrical noise, power disturbances and transient spikes that are common to industrial applications. The Legend Series’ six-button tactile keypad allows for quick navigation and programming. The Legend Plus Series offers a full numeric keypad.

The Legend Series offers a valuable solution for a variety of applications, from basic weighing to batching. Built-in gross/net modes provide quick flexibility for everyday needs. Also utilize the 480’s custom ticket printing to modify gross, net and setpoint tokens for a tailored print format.

• LED display (480)
• LCD backlit display (482)
• Time and date, battery backed
• Local/remote operation
• Numeric keypad (480 Plus/482 Plus)
• Keyed entries for setpoint values (480 Plus/482 Plus)
• Two independent serial ports
• NEMA Type 4X/IP66 stainless steel washdown enclosure
• Programmable ticket formats for gross, net, accumulator and setpoints
• Five continuous stream formats
• Adapter filter or rolling average filter
• Operator functions through menu for audit trail, preset tare, unit ID, accumulator, time and date, setpoints, communications and print formats
• Eight setpoints, sequenced batch engine
• Configurable with Revolution® software
AnnunciatorsGross, net, center of zero, standstill, lb, kg, tare, preset tare
Display480/480 Plus: LED display
0.8 in (20 mm), six-digit, seven-segment
482/482 Plus: LCD backlit display, transmissive/transflective
0.8 in (20 mm), six-digit, seven-segment
Keys/ButtonsFlat membrane panel, embossed keys, tactile feel
Temperature RangeCertified: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: 14 °F to 122 °F (-10 °C to 50 °C)
Rating/MaterialNEMA Type 4X/IP66
Stainless steel
Weight6.4 lb (2.9 kg)
WarrantyTwo-year limited
EMC ImmunityEN 50082 Part 2 IEC EN
61000-4-2, 3, 4, 5, 6, 8, and 11
ApprovalsNTEP 12-123, Class III/IIIL, 10,000d
Measurement Canada AM-5892C
OIML R76/2006-NL1-15.24
EU Test Certificate TC8322
CE Marked
cULus
UKCA
PowerLine voltages: 100 to 240 VAC
Frequency: 50/60 Hz
DC voltages: n/a
Power consumption8 W
Excitation Voltage5 VDC, 8 × 350 ohm or 16 × 700 ohm load cells
Analog Signal Input Range±7mV/V
Analog Signal Sensitivity0.1 μV/graduation minimum,
0. 5 μV/graduation recommended
A/D Sample Rate5, 10, 20, 40 Hz, software selectable
ResolutionInternal: 523,000 counts
Display: 100,000
System LinearityWithin 0.01% of full scale
Digital I/OOptional 2 or 4 inputs
4 or 8 dry-contact relays
Communication PortsCom 1: RS-232 full duplex
Com 2: RS-232 full duplex or 20 mA simplex, continuous
Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud seven or eight data bits, even, odd or no parity
(Optional) Analog Output16-bit resolution, voltage output 0-10 VDC, current output 0-20 mA / 4-20 mA
(Optional) Relay BoardTwo opto-isolated, 5 to 24 VDC, active high inputs
Primary keys, pseudo functions, batching functions
(4) 30 VDC, 2 amp dry-contract relays
  • Thumbnail of document Lit us 150617 480 482 legend series hr 17166
    Download

    Lit us 150617 480 482 legend series hr 17166

    Download

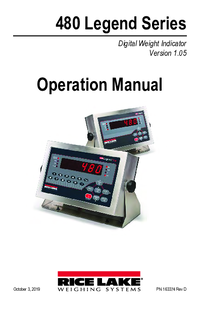

  • Thumbnail of document M us 163374 480operation revd 17167
