Amprobe

37XR-A True-RMS Digital Multimeter

Offers True-RMS measurement along with component and logic testing for troubleshooting electronics

Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Used in
37 XR A True RMS Digital Multimeter 03801

The Amprobe 37XR-A Digital Multimeter offers true-rms measurement along with component and logic testing for troubleshooting electronics at the bench or on the job site.

The 37XR-A comes with test leads with threaded alligator clips, one (1) 9 V battery (installed), one (1) spare fuse, user's manual, and a Magne-Grip Holster with magnetic hanging strap.





• Backlight, True-RMS with component and logic test
• Inductance to 40 H, frequency to 40 MHz, capacitance to 400 μF, logic to 20 MHz
• Input warning tone when test leads are in wrong jack
• 10 Amps AC/DC, fully safety fused
• Continuity beeper
• Min/max, average, relative, peak, and data hold
• Auto power off to save battery life
• Separate door for easy battery and fuse access
• Magne-Grip™ Holster with magnetic hanging strap
• Autoranging; display: 4-3/4 digit LCD, 10,000 counts with 41-segment analog bar graph
• Display Update Rate: 2/s, nominal
• Power Battery: 9 V NEDA 1604, JIS 006P, IEC 6F22
• Operating temperature: 0°C - 45°C at < 70% R.H

Logic test, logic type TTL, CMOS
Resistance accuracy 1000 O to 1000 kO ranges: ± (0.5 % rdg + 8 dgts)
10 MO range: ± (1.0 % rdg + 10 dgts)

40 MO range: ± (2.0 % rdg + 10 dgts)

Resistance ranges 1000 O 10 kO 100 kO 1000 kO 10 MO 40 MO
AC Current (45 Hz to 1 kHz) True-rms resolution 0.01 µA
AC Current (45 Hz to 1 kHz) True-rms accuracy 100 µA to 100 mA ranges: ± (1.5 % rdg + 10 dgts)
400 mA range: ± (2.0 % rdg + 10 dgts)

AC Current (45 Hz to 1 kHz) True-rms ranges 100 µA, 1000 µA, 10 mA, 100 mA, 400 mA, 10 A
10 A range: ± (2.5 % rdg + 10 dgts)

DC Current resolution 0.01 µA
DC Current accuracy 100 µA range: ± (0.5 % rdg + 10 dgt)
1000 uA to 400 mA ranges: ± (0.5 % rdg + 5 dgts)
10 A range: ± (1.5 % rdg + 10 dgt)


DC Current ranges 100 µA, 1000 µA, 10 mA, 100 mA, 400 mA, 10 A
AC coupled True RMS specified from 5 % to 100 % of range
AC Voltage (45 Hz to 2 kHz) True-rms resolution 100 µV
AC Voltage (45 Hz to 2 kHz) True-rms accuracy 750 V range: 45 to 1 kHz: ± (2.0 % rdg + 10 dgts)
All other ranges, 45 to 500 Hz: ± (1.2 % rdg + 10 dgts)

All other ranges, 500 to 2 kHz: ± (2.0 % rdg + 10 dgts)

AC Voltage (45 Hz to 2 kHz) True-rms ranges 1000 mV, 10 V, 100 V, 750 V
DC Voltage resolution 100 µV
DC Voltage accuracy All ranges ± (0.1 % rdg + 5 dgt)
DC Voltage ranges 1000 mV, 10 V, 100 V, 1000 V
dBm -13 dBm → + 50 dBm
Inductance 40 H
Logic test •
Duty cycle 0.00 % → 90.0 %
Temperature –
Frequency 100.00 Hz, 1.0000 kHz, 10.000 kHz, 100.00 kHz, 1.0000 MHz, 10.000 MHz
Capacitance 40.00 nF. 400.0 nF, 4.000 µF, 40.00 µF, 400.0 µF
VolTect™ Non-Contact Voltage Detection –
Diode •
Continuity •
Resistance 1000.0 O, 10.000 kO, 100.00 kO, 1000.0 kO, 10.00 MO , 40.00 MO
AC Current 100.0 µA, 1.000 µA, 10.00 mA, 100.0 mA, 400.0 mA, 10.00 A
DC Current 100.0 µA, 1.000 µA, 10.00 mA, 100.0 mA, 400.0 mA, 10.00 A
AC Voltage 1.000 mV, 10.00 V, 100.0 V, 1000 V
DC Voltage 1.000 mV, 10.00 V, 100.0 V, 1000 V

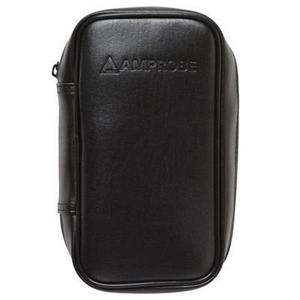

Accessories
