287 True-RMS Electronic Logging Multimeter with Trendcapture

Name: 287 True-RMS Electronic Logging Multimeter with Trendcapture
Brand: Fluke
SKU: placeholder-287-true-rms-electronic-logging-multimeter-with-trendcapture
Price: 783.99 USD
Availability: InStock

Packs more accuracy and convenience into a handheld multimeter than ever before

Have questions? We're here to help!

Call

Used in

287 True RMS Electronic Logging Multimeter with Trendcapture 03204

The Fluke 287 True-RMS Electronics Logging Multimeter with TrendCapture quickly documents design performance and graphically displays what happened. Its unique logging and graphing capabilities mean you no longer need to download logged readings to a PC to detect a trend. The Fluke 287 packs more accuracy and convenience into a handheld multimeter than ever before.

Maximize productivity with the combined Fluke 287 and FlukeView® forms combo kit. Designed for today’s professionals involved in R&D, maintenance, manufacture and design of electronic circuits or systems. With built-in data logger and TrendCapture™ (the meters on screen graphical display) capability, the 287 helps you track down elusive, intermittent problems or monitor equipment with any of its functions.

FlukeView Forms enables you to document, store, and analyze individual readings or series of measurements, overlay logged data to find cause and affect relationships, or turn your data into meaningful graphs and tables for a professional report. The 287 is compatible with the new Fluke IR3000 FC Infrared Connector, allowing you to share live measurements on your iOS or Android smart device with the Fluke Connect mobile app. The 287/FVF combo kit gives you a practical and affordable approach to documenting circuit design performance.

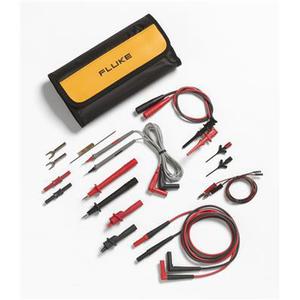

TL175 test leads, AC175 alligator clips and 6 AA batteries included. Kit includes 80BK-A Thermocouple Probe, TL225 test leads with 175 modular probe tips, AC175 alligator clips, magnetic hanging strip, TL71 probe caps, C280 soft case, 6 AA batteries, CD user manual, and FlukeView Forms Software with cable.

Fluke IR3000FC Infrared Connector is required for Fluke Connect communication (sold separately).

• Now compatible with Fluke Connect mobile app and all Fluke FC enabled test tools with optional IR3000 FC infrared connector (sold separately)
• Let your team see what you see in an instant with ShareLive™ video call (requires Fluke Connect mobile app and IR3000 FC wireless connector)
• TrendCapture quickly graphically displays logged data session to quickly determine whether anomalies may have occurred
• Zoom on trend provides unprecedented ability to view and analyze TrendCapture data; zoom in up to 14 times
• Selectable AC filter (smoothing mode) helps display a steadier reading when the input signal is changing rapidly or noisy
• Adjustable recording and auto hold thresholds, specify a percentage change in the readings that begins a new event
• Large 50,000 count, 1/4 VGA display with white backlight. Multiple sets of measurement information can be simultaneously displayed at the same time
• Logging function with expanded memory for unattended monitoring of signals over time. Using on-board TrendCapture users can graphically review logged readings without needing a PC. Store up to 15,000 recorded events.
• Multi-lingual interface and on board help screens for measurement functions
• Multiple logging sessions possible without download, and saved measurements allow you to name and recall measurements made in the field
• 0.025 % basic DC accuracy.
• FlukeView forms enable you to document, store and analyze individual readings or a series of measurements, then convert them into professional-looking documents
• Real time clock for automatic time stamping of saved readings
• True-RMS AC voltage and current for accurate measurements on complex signals or non-linear loads. AC bandwidth specified to 100 kHz.
• Measure up to 10 A (20 A for 30 s) with a 100 mF capacitance range and temperature range
• Relative mode to remove test lead resistance from low ohms or capacitance measurements.
• Peak capture to record transients as fast as 250 μs.
• Premium test leads, alligator clips, and Amp jack plugs included
• Optional magnetic hanger allows you to hang the meter for easy viewing while freeing your hands to focus on the job.
• Limited lifetime warranty

Specifications
Function	Range and Resolution	Basic Accuracy
DC Volts	50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V	0.025%
AC Volts		0.4% (True-RMS)
DC Current	500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A	0.05%
AC Current		0.6% (True-RMS)
Temperature (Excluding Probe)	-200.0°C - 1350.0°C (-328.0°F - 2462.0°F)	1.0%
Resistance	500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ,5.0000 MΩ, 50.00 MΩ, 500.0 MΩ	0.05%
Capacitance	1.000 nF,10.00 nF 100.0 nF, 1.000 μF, 10.00 μF, 100.0 μF, 1000 μF, 10.00 mF, 100 mF	1.0%
Frequency	99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz	0.005%
