1760 Three-Phase Power Quality Recorder Topas

Name: 1760 Three-Phase Power Quality Recorder Topas
SKU: placeholder-1760-three-phase-power-quality-recorder-topas
Price: 27514.66 USD
Availability: InStock

Class-A compliance for the most demanding power quality tests

Have questions? We're here to help!

Call

Used in

1760 Three Phase Power Quality Recorder Topas 03253

The Fluke 1760 Three-Phase Power Quality Recorder is fully compliant to IEC 61000-4-30 Class-A for advanced power quality analysis and consistent compliance testing. Designed for analysis of utility and industrial power distribution systems, in medium- and low-voltage networks, this power quality monitor provides the flexibility to customize thresholds, algorithms, and measurement selections. The 1760 power recorder captures the most comprehensive details on user-selected parameters.

Useful for detailed disturbance analysis, Class-A quality-of-service compliance, event correlation at multiple locations, galvanic separation and DC coupling, and power quality and power load studies.

• Fully Class-A compliant so you can conduct tests according to the stringent international IEC 61000-4-30 Class-A standard

• GPS time synchronization so you can correlate data with events or datasets from other instruments with precision

• Flexible and fully configurable thresholds and scale factors allows the user to pinpoint specific issues

• Uninterrupted power supply (40 min) so you never miss important events

• 10 MHz, 6000 Vpk waveform capture enables you to get a detailed picture of even the shortest event

• 2 GB data memory enables detailed, simultaneous recording of numerous power parameters for long periods of time

• Comprehensive software included provides trend diagrams for root cause analysis, statistical summaries, report writing and real-time data monitoring in the online mode

• Plug and play allows for quick setup with automatic sensor detection

• Rugged field design with insulated housing and a solid state design (no rotating components) enable reliable testing under nearly any conditions

• Power quality statistics according to EN50160

• Voltage event list (dips, swells and interruptions)

• Continuous recording of:

- Voltage

- Current

- Power P, Q, S

- Power factor

- kWh

- Flicker

- Unbalance

- Frequency

- Voltage and current harmonics to the 50th / Interharmonics

- THD

- Mains signaling

• Triggered recordings

• Online mode (Oscilloscope, transients and events)

• Fast transient analysis up to 10 MHz

• 4, 600 V voltage probes

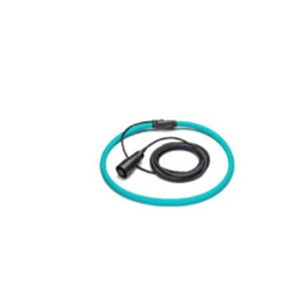

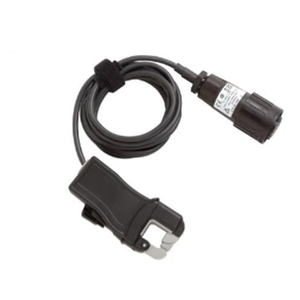

• 4 dual-range flexible current probes (1000 A / 200 A AC)

• GPS time sync receiver

• 2 GB Flash Memory

Overview of Measurement Functions
Statistical Evaluation		Power quality statistics according to EN50160 and DISDIP tables like ITIC, CEBEMA, ANSI
Event List		Dips, swells and interruptions are detected and stored in the event list. Also any trigger which fires generates an event added to this list. The Event list shows the exact time when the event occurred as well as the duration and magnitude. Sorting by several attributes of these events is possible to select one for further root cause analysis. RMS values, transients and fast transients can be stored if a trigger fires
Continuous Recording		Fluke 1760 records RMS values together with corresponding minimum and maximum values for: • Voltage • Current • Power P, Q, S • Power Factor • kWh • Flicker • Unbalance • Frequency • Harmonics/Interharmonics All continuously with the following time aggregations: • Day • 10 min • Free interval (eg. 15 min, 2 h)
Triggered Recordings	RMS	Aggregation time is adjustable between 10 ms (1 / 2 cycle), 20 ms (1 cycle), 200 ms (10 / 12 cycles) or 3 s (150 / 180 cycles). Calculating RMS values, Harmonics and Interharmonics is performed synchronous to the power frequency. Basic aggregation for harmonics and interharmonics is 200 ms.
	Oscilloscope	Sample rate is 10.24 kHz for all 8 channels
	Fast	Sample rate is selectable from 100 kHz - 10 MHz for channel
	Transients	1-4 FFT of Fast Transients

• Detailed disturbance analysis – Perform high-speed transient analysis and uncover root cause of equipment malfunction for later mitigation and predictive maintenance. The fast transient option, with its 6000 V measurement range, allows capture of very short impulses such as lightning strikes.

• Class-A quality-of-service compliance – Validate incoming power quality at the service entrance. Thanks to Class A compliance, the Fluke 1760 allows undisputable verification.

• Event correlation at multiple locations – Utilizing GPS time synchronization, users can quickly detect where a fault occurred first, either inside or outside the facility.

• Galvanic separation and DC coupling – Allows complete measurements on dissimilar power systems. For example troubleshoot UPS systems by simultaneously recording the battery voltage and power output.

• Power quality and power load studies – Assess baseline power quality to validate compatibility with critical systems before installation and verify electrical system capacity before adding loads.
