100 AV Durablock Air Velocity Gage Kit
Suitable for total pressures up to 100 PSIG (6.89 Bar), temperatures to 150°F (65.6°C)
Designed to measure air velocity, static pressure, vacuum or differential pressure, where the additional range of the 400 Series gages is not required. Series 100 Gages offer superb accuracy combined with portability. The Dwyer® Durablock® precision machined solid acrylic plastic construction, the wells and inclined bore are machined to tolerances of ± 0.0002".
Complete Air Velocity Kits Include:

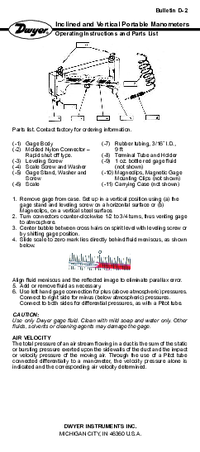

Dwyer® Inclined Manometer, stainless steel Pitot tube (12" with Models 102 AV & 115 AV), two 9' lengths of rubber tubing with connectors, additional red gage fluid, instruction card H-7, Bulletin H-11 and magnetic mounting clips, air velocity calculator slide rule and carrying case.
• Plastic Body - A 1 in thick solid acrylic block, virtually unbreakable. It is stable and free of the danger of distortion.
• Drilled Bore - Permanently free of bends - never requires recalibration due to distortion.
• Reflective Chrome Finish Scales - Easily eliminates parallax errors in reading. Adjustable, with thumbscrew locking for easy zeroing. (Model 125 AV uses screw plunger to adjust zero setting).
• Red Gage Fluid - 0.826 specific gravity. Forms a well-shaped, easy-to-read meniscus - the result of high wetability.
• Leveling Adjustment - Screw allows quick, accurate leveling. Integral ground glass bubble level provides ready reference.
_15836_1-72_5f28a37dfffeac17d8504dfc1bc3d34b.png)
Accessories
![A 532 Air Velocity Calculator Slide Chart 05232]()
DwyerA-532 Air Velocity Calculator Slide Chart
Air velocity calculator slide chart makes spot checking with Dwyer pitot tubes quick and easy
Buy now!$16.50 USDNormally ships in 1-2 weeks![A 357 Tube Holder 05233]()
DwyerA-357 Tube Holder
Thermometer and terminal tube holder, stainless steel wire.
Buy now!$8.65 USDNormally ships in 1-2 weeks- In Stock *
![A 101234 Red Gage Fluid 05141]()
DwyerA-101/2/3/4 Red Gage Fluid
The standard fluid for use in inclined manometers, "D" type vertical manometers, and all Dwyer gages using red fluid
Starting at$12.85 USDSome SKUs available now ![A 315 Shutoff Type Gage Connector 05234]()
DwyerA-315 Shutoff Type Gage Connector
Shutoff type gage connector for 3/16 in rubber tubing
Buy now!$22.40 USDNormally ships in 1-2 weeks![A 536 Air Velocity Calculator Slide Chart Metric 05235]()
DwyerA-536 Air Velocity Calculator Slide Chart, Metric
Metric air velocity calculator slide chart.
Buy now!$17.60 USDNormally ships in 3-4 weeks![A 201 Rubber Tubing 316 ID x 9 L 07280]()
DwyerA-201 Rubber Tubing (3/16" ID x 9'L)
Rubber tubing has less tendency to kink in storage and occupies less space, thus is best for portable work
Buy now!$12.05 USDNormally ships in 1-2 weeks![166 12 Pocket size Pitot tube 08802]()
Dwyer166-12 Pocket size Pitot tube
Pocket size Pitot tube, 1/8" dia., 12" insertion length, 3" tip.
Buy now!$169.80 USDNormally ships in 3-4 weeks![A 354 Magnetic Mounting 08572]()

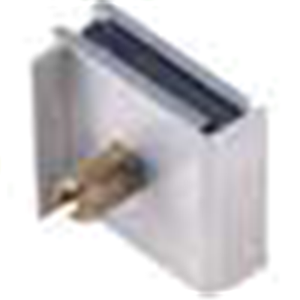

DwyerA-354 Magnetic Mounting
Magnetic mounting, edge style, secures edge of acrylic manometer with No. 10-32 machine screw and boots insert.
Buy now!$15.40 USDNormally ships in 3-4 weeks![A 404 Plastic Carrying Case 08573]()
DwyerA-404 Plastic Carrying Case
Plastic carrying case for portable inclined gages 100, 101, 108, 115 - 12-1/4" x 6-1/4" x 1-3/4".
Buy now!$75.55 USDNormally ships in 3-4 weeks
